Bulldog-WIFI Valve Robot, Valves up to 1.5 inches Works with Smartlife, Google Home, Amazon Alexa & SmartThings | Free Shipping

SKU: EVC300-HC2LXL-WIFI

$297.00 CAD

Looking for a Matter Solution? Check out the Bulldog-MW

Looking for a Matter Solution with Sensors? Check out the Bulldog-MW-SK3

Looking for a Z-Wave Solution? Check out the Bulldog Z-Wave

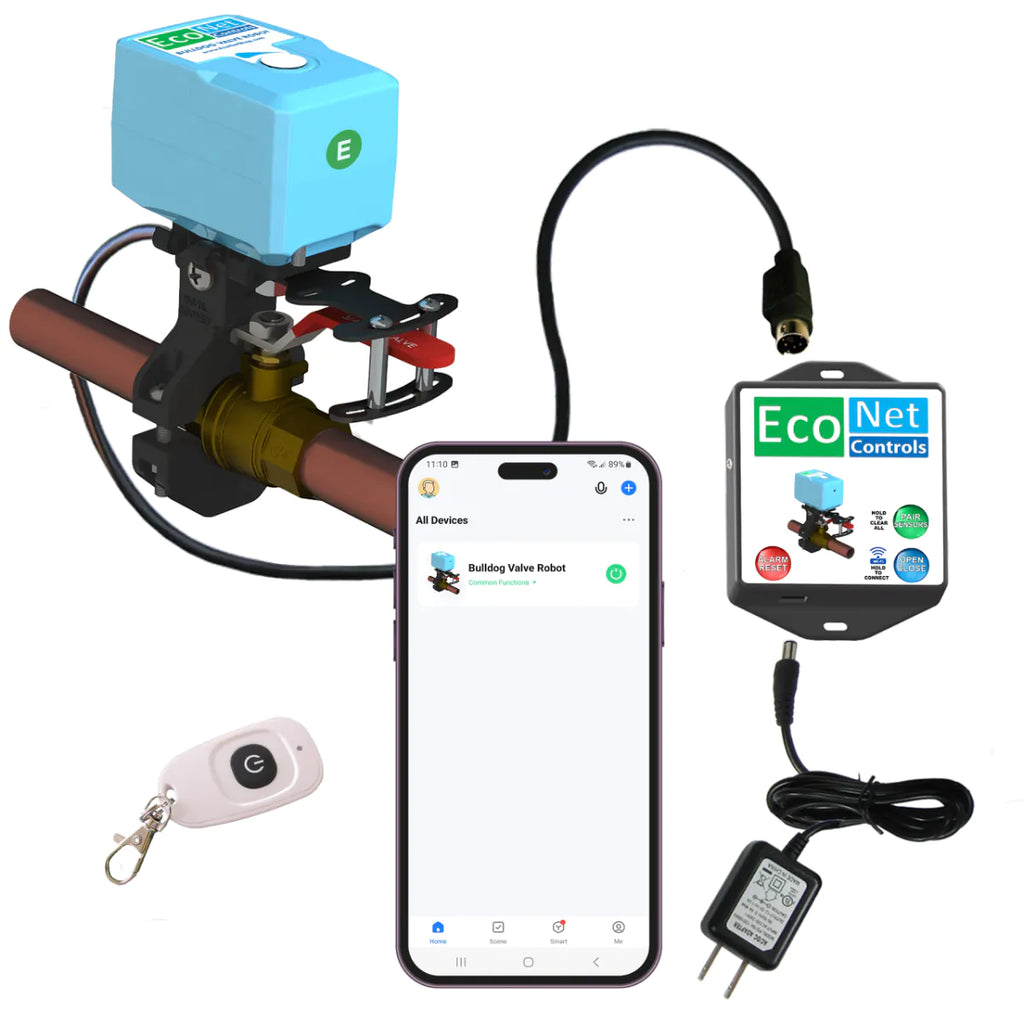

Bulldog-WIFI Valve Robot conveniently allows you automate your water shut-off system without the need for a separate hub. With direct WIFI connectivity, you can monitor and manage your water supply from anywhere, protecting your home from water damage with ease. Whether you’re at home or on vacation, this system provides peace of mind by allowing full control over your water valves through a user-friendly app or voice commands.

SmartLife App: Control the valve from your smartphone using the SmartLife app, offering full remote monitoring and automation.

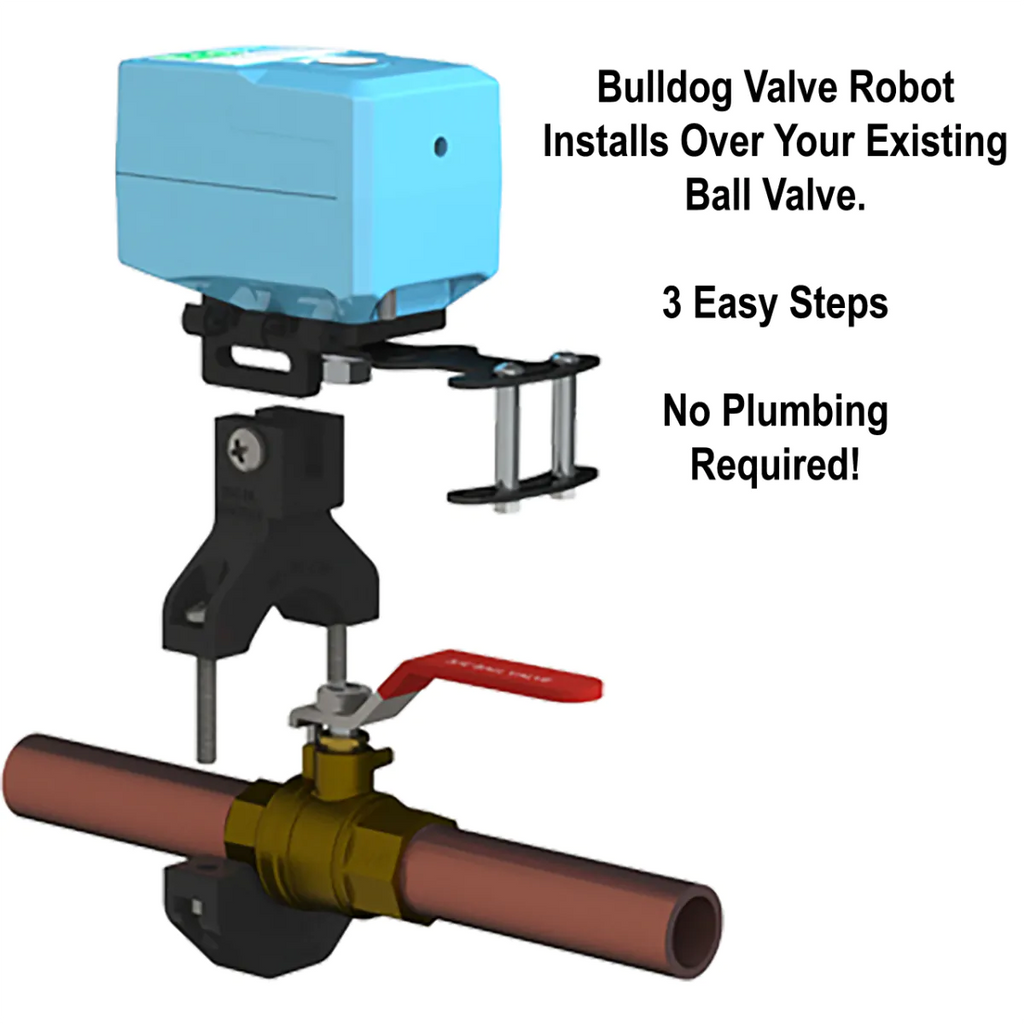

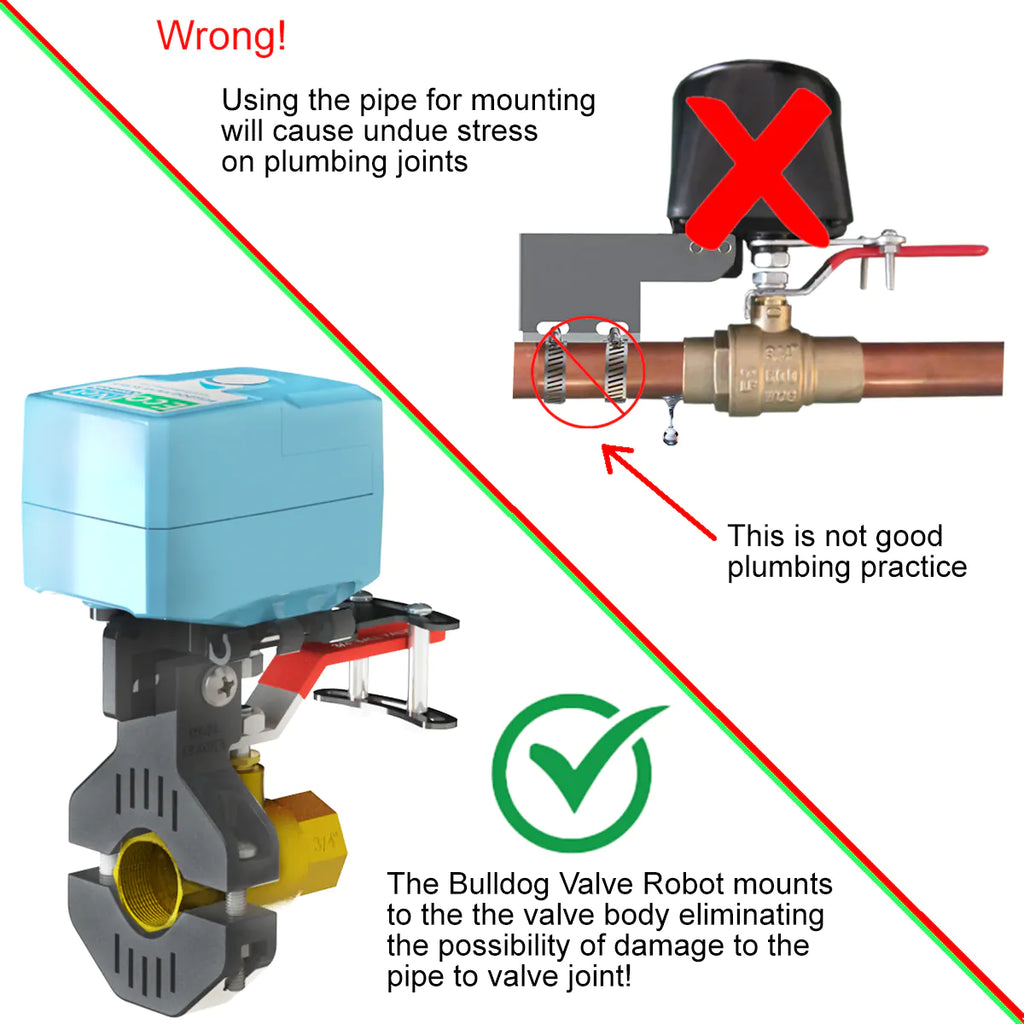

Easy Installation: No plumbing modifications or special tools required—fits directly over existing levered ball valves.
Wifi Connectivity: No hub required, connects directly to Wi-Fi.

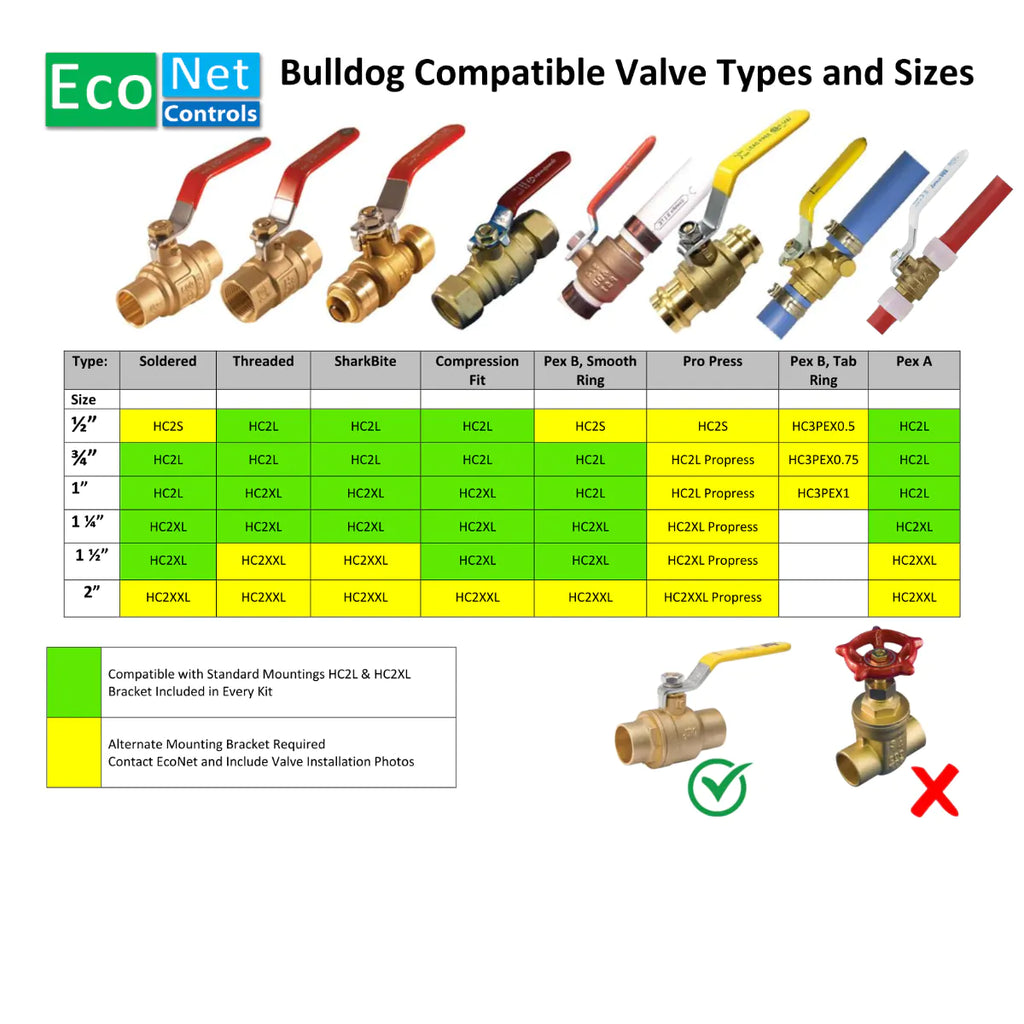

Wide Valve Compatibility: Works with most standard ¾", 1", 1.25", and 1.5" valves (Refer to Valve Compatibility Chart).
Durability & Performance: High-torque motor and intelligent stroke control ensure reliable operation, even for tough installations.

Technical Specifications

Bulldog Motor Specifications

Mechanical Specifications

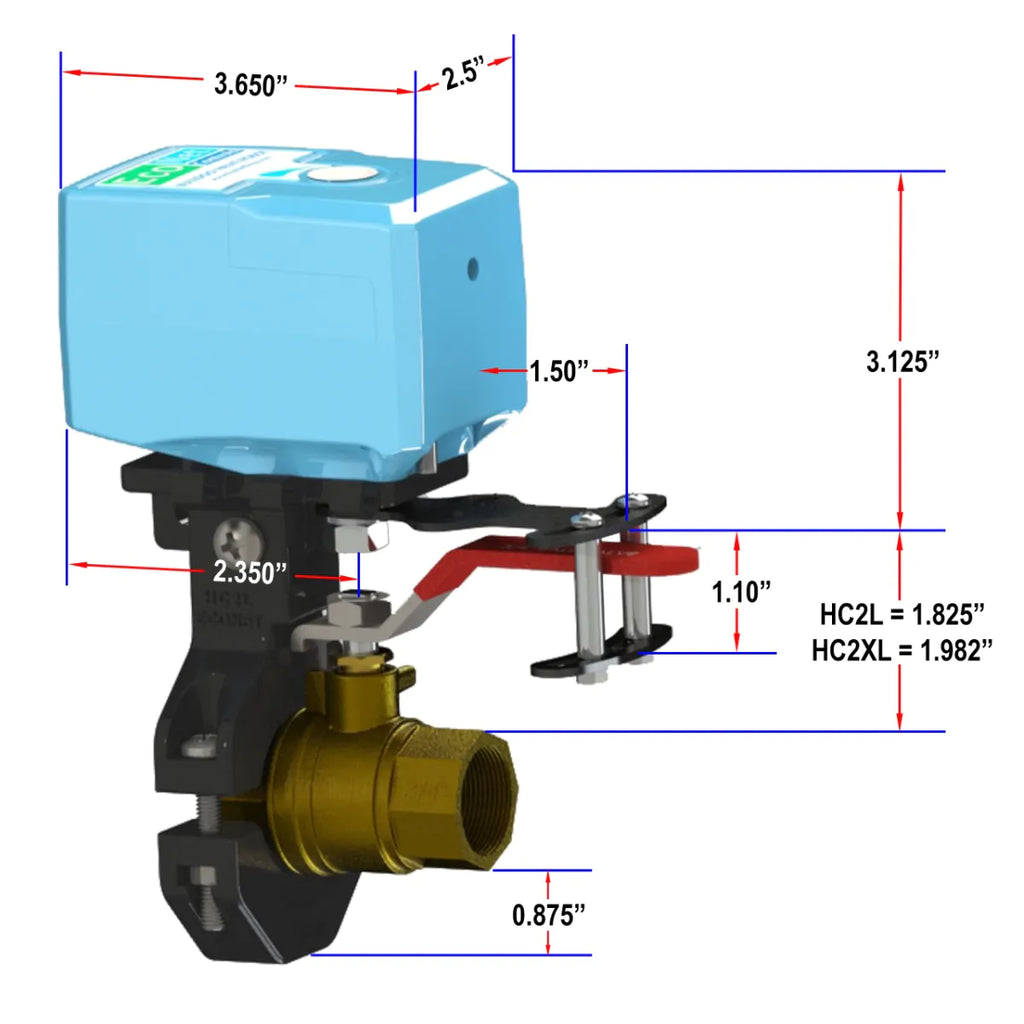

Dimensions:

3.65*2.50*2.60in 9.27*6.35*6.60cm

Torque:

11lbf (~15Nm)

Materials:

Plastic, Metal

Arm Material:

Stainless Steel

Cable Length:

~10ft(3m)

Sealing:

Weather Resistant

Weight:

0.42lbs(0.19kg)

Color:

Black, Blue

Max Rotational Angle:

90 degrees Clockwise

Open/Close Time

~18 seconds

Electrical Specifications

Operating Voltage:

12VDC

Cable Type

USB-C male to PS2 male

EVC300 Controller Specifications

Mechanical Specifications

Dimensions:

3.88*2.94*1.06in 9.86*7.47*2.69cm

Materials:

Plastic

Color:

Black

Operational Temperature:

-4F to 104F/-20C to 40C

Weight:

0.19lbs(0.085kg)

Buttons:

LEDs:

Alarm Volume:

110dB

Ports:

PS2, 2.5mm Stereo Jack, DC Connector 5.5mm x 2.1mm

Mounting Holes:

Electrical Specifications

Operating Voltage:

12VDC

Voltage Max:

12VDC

Power Max:

Communication Specifications

RF Transmitter Frequency:

433MHz

RF Transmitter Range:

~130ft(40m) Indoors

Wi-Fi Transmitter Standard:

2.4GHz b/g/n

Wi-Fi Transmitter Range:

~150ft(45m) Indoors

Router Requirements:

Dual Band SSID/dedicated 2.4GHz SSID

Certifications:

FCC

AC/DC Adapter Specifications

Mechanical Specifications

Model:

MKC-1201000S

Dimensions:

1.87*1.55*0.90in 4.75*3.95*2.30cm

Materials:

PC+ABS Fireproof

Color:

Black

Cable Length:

~10ft(3m)

Cable Type:

DC Connector 5.5mm x 2.1mm

Electrical Specifications

Output:

12VDC

Input:

Universal 100-240V 50/60Hz

Power Source:

Half-Bridge Type

Protection:

Over Current/Voltage/Short Circuit Protection

Certifications:

CE, GS, BS, UL, FCC, PSE, Kc, SAA, CB, S-MARK

Wired Probe Leak Sensor Specifications

Mechanical Specifications

Dimensions:

1.50*1.00*0.35in 3.81*2.54*0.89cm

Color:

Black

Weight:

0.02lbs(0.011kg)

Cable Length:

~29"(73.6cm) Non-Conductive

Cable Type:

2.5mm Stereo Jack

Wired Rope Leak Sensor Specifications

Mechanical Specifications

Dimensions:

0.59*0.59*39.37in 0.40*0.40*100.00cm

Color:

White

Weight:

0.08lbs(0.035kg)

Cable Length:

39.37"(1m) Conductive

Cable Type:

2.5mm Stereo Jack

Wireless Keyfob Button Specifications

Mechanical Specifications

Model:

HFY512C

Dimensions:

2.50*1.35*0.50in 6.35*3.43*1.27cm

Materials:

Plastic

Color:

White

Weight:

0.04lbs(0.02kg)

Buttons:

LED's:

Electrical Specifications

Operating Voltage:

6VDC

Batteries

CR2032 3V x 2

Communication Specifications

RF Transmitter Frequency:

433MHz

RF Transmitter Range:

~50ft(15m) Indoors

Battery Backup Specifications

Mechanical Specifications

Model:

YB1203000-USB

Dimensions:

4.13"x2.52” x 0.94” 10.50cm x 6.4cm x 2.40cm

Materials:

Thermoplastic, Steel

Color:

Black

Weight:

0.42lbs(0.19kg)

Splitter:

DC5521 1 female to male cable

LED's:

Ports:

USB, DC Connector 5.5mm x 2.1mm

Electrical Specifications

Output Voltage, Connector 5.5mm x 2.1mm:

12VDC(9V-12.6V)

Output Amperage, Connector 5.5mm x 2.1mm:

Output Voltage, USB:

5VDC

Output Amperage, USB:

Capacity:

11.1V/3Ah (33.3Wh)

Certifications:

FCC,CE

Outdoor Kit 2 Enclosure Specifications

Mechanical Specifications

Dimensions:

7.50*7.60*3.50in 19.05*19.30*8.89cm

Color:

Light Green

Weight:

0.99lbs(0.449kg)

Material:

PVC

Sealing:

Weather Resistant

Accessories

Alternate Mounting Kits

Do you have an unusual, larger, or smaller valve than normal? Consider upgrading/adding the Alternate Mounting Kit to allow the Bulldog motor to mount on your valve. Refer to the Valve Compatibility Chart for more info, or if you are unsure of your valve size and/or type contact support@econetcontrols.com with the diameter of the connected pipe and an image of the valve you plan to install on.

Wired Leak Sensor Kits

Do you have any leak sensitive spots near your valve like a washing machine or water heater? Consider upgrading/adding a Wired Leak Sensor Kit, for more protection and versitility.

Battery Backup

Do you have power outages in your area? Consider upgrading/adding a battery backup kit that can keep your Bulldog system working for up to 24 hours during a power outage.
