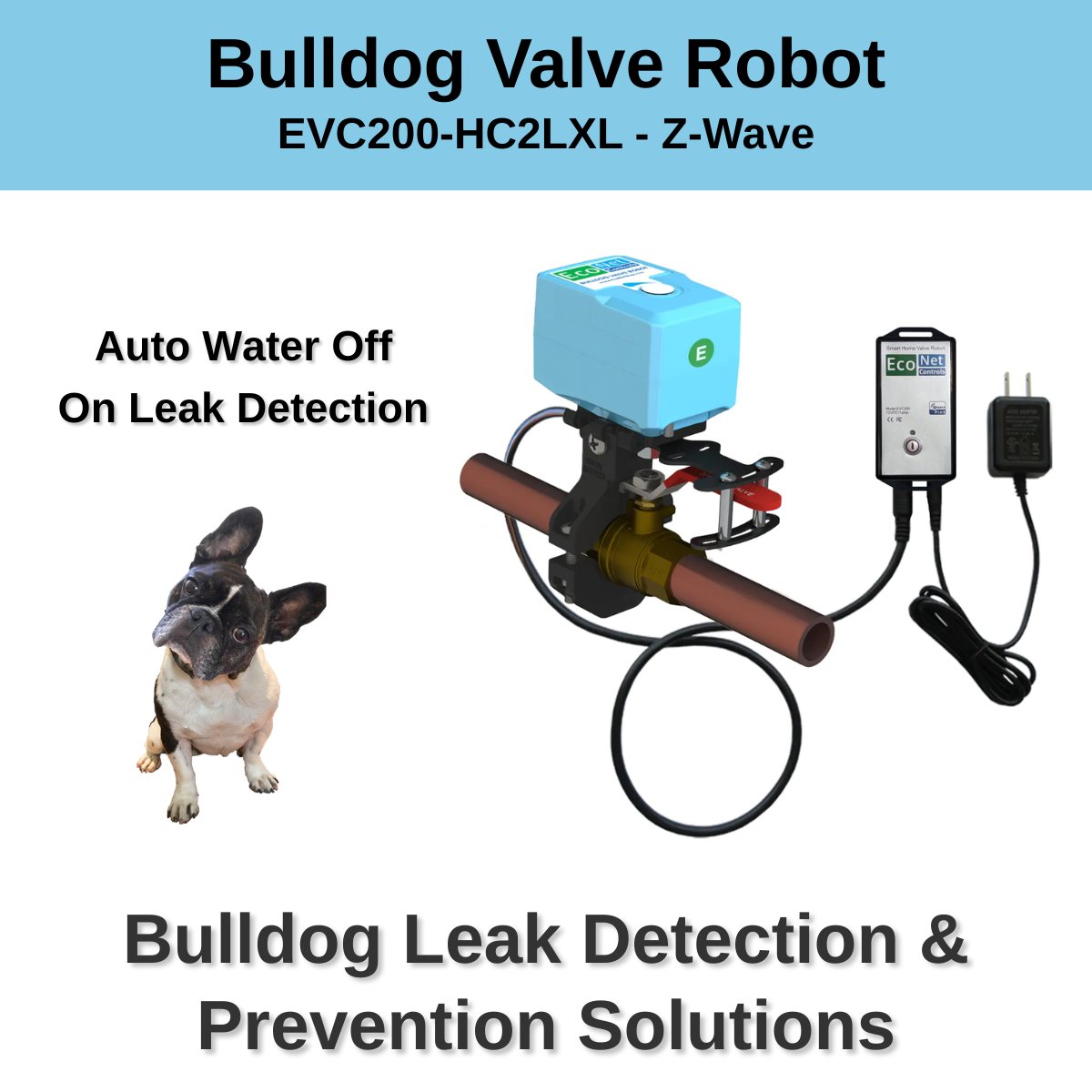

Name: Bulldog Valve Robot EVC200-HC2LXL – Z-Wave Smart Water Valve, No Plumbing Required, Easy Installation for Valves up to 1.5" | Z-Wave Hub/Controller Required | Free Shipping
Brand: EcoNet Controls
SKU: EVC200-HC2LXL
Price: 297.00 CAD
Availability: InStock

1/6

Bulldog Valve Robot EVC200-HC2LXL – Z-Wave Smart Water Valve, No Plumbing Required, Easy Installation for Valves up to 1.5" | Z-Wave Hub/Controller Required | Free Shipping

SKU: EVC200-HC2LXL

$297.00 CAD

Looking for a Bulldog Matter over WIFI Solution?
Check out the Bulldog Matter over WIFI

Control your water valve remotely with the EcoNet Controls Smart Valve Controller Kit, a Z-Wave Plus certified device designed for quick and easy installation with no plumbing work required. (Z-Wave Hub/Controller Required) This smart valve controller kit fits most standard valves from ½" to 1.5" and automates water flow control, allowing you to remotely open or close your valves in seconds using a compatible smart home controller/hub. Ideal for flood prevention and leak prevention when paired with other leak sensors in your home. The high-torque motor ensures reliable performance, while the device’s wireless range extends up to 30 meters (line of sight). Optional leak sensors and integrated ball valves are available for enhanced protection, providing real-time alerts and seamless integration with your existing plumbing. The controller is simple to set up and comes with a universal AC adapter.

Prevent Water Damage & Expensive Insurance Claims:
Installing a smart water shut-off system like the EcoNet Controls Smart Valve Controller Kit paired with Leak Sensors can help you save on homeowners insurance premiums. Many insurance companies offer discounts for homes equipped with water damage prevention devices. Water leaks are one of the leading causes of home insurance claims, with an average repair cost of over $10,000. With proactive leak prevention, you can avoid expensive repairs and enjoy potential long-term savings.

Technical Specifications

SmartThings Kit Hub Specifications

Mechanical Specifications

Model:

GP-AEOHUBV3EU/UK/AN/US

Dimensions:

5.00*5.00*1.20in 12.70*12.70*3.10cm

Color:

White

Operational Temperature:

32F to 140F/0C to 60C

Weight:

0.3lbs(0.136kg)

Buttons:

LEDs:

Ports:

Ethernet, USB, DC Connector 5.5mm x 2.1mm

Electrical Specifications

Rated Voltage:

5VDC

Rated Power:

10W

Communication Specifications

Z-Wave Transmitter Frequency:

908.42 MHz, 921.4 MHz, 868.4MHz

Z-Wave Transmitter Range:

~100ft(30m) Indoors

Zigbee Transmitter Range:

~40ft(12m) Indoors

Wi-Fi Transmitter Standard:

2.4GHz a/b/g/n/ac

Router Requirements:

Dual Band SSID/ dedicated 2.4GHz SSID

Certifications:

FCC, Zigbee 3.0, Z-Wave Plus, IC, CE

Wired Rope Leak Sensor Specifications

Mechanical Specifications

Dimensions:

0.59*0.59*39.37in 0.40*0.40*100.00cm

Color:

White

Weight:

0.08lbs(0.035kg)

Cable Length:

39.37"(1m) Conductive

Cable Type:

2.5mm Stereo Jack

Battery Backup Specifications

Mechanical Specifications

Model:

YB1203000-USB

Dimensions:

4.13"x2.52” x 0.94” 10.50cm x 6.4cm x 2.40cm

Materials:

Thermoplastic, Steel

Color:

Black

Weight:

0.42lbs(0.19kg)

Splitter:

DC5521 1 female to male cable

LED's:

Ports:

USB, DC Connector 5.5mm x 2.1mm

Electrical Specifications

Output Voltage, Connector 5.5mm x 2.1mm:

12VDC(9V-12.6V)

Output Amperage, Connector 5.5mm x 2.1mm:

Output Voltage, USB:

5VDC

Output Amperage, USB:

Capacity:

11.1V/3Ah (33.3Wh)

Certifications:

FCC,CE

Outdoor Kit 2 Enclosure Specifications

Mechanical Specifications

Dimensions:

7.50*7.60*3.50in 19.05*19.30*8.89cm

Color:

Light Green

Weight:

0.99lbs(0.449kg)

Material:

PVC

Sealing:

Weather Resistant

AC/DC Adapter Specifications

Mechanical Specifications

Model:

MKC-1201000S

Dimensions:

1.87*1.55*0.90in 4.75*3.95*2.30cm

Materials:

PC+ABS Fireproof

Color:

Black

Cable Length:

~10ft(3m)

Cable Type:

DC Connector 5.5mm x 2.1mm

Electrical Specifications

Output:

12VDC

Input:

Universal 100-240V 50/60Hz

Power Source:

Half-Bridge Type

Protection:

Over Current/Voltage/Short Circuit Protection

Certifications:

CE, GS, BS, UL, FCC, PSE, Kc, SAA, CB, S-MARK

Wired Probe Leak Sensor Specifications

Mechanical Specifications

Dimensions:

1.50*1.00*0.35in 3.81*2.54*0.89cm

Color:

Black

Weight:

0.02lbs(0.011kg)

Cable Length:

~29"(73.6cm) Non-Conductive

Cable Type:

2.5mm Stereo Jack

Bulldog Motor Specifications

Mechanical Specifications

Dimensions:

3.65*2.50*2.60in 9.27*6.35*6.60cm

Torque:

11lbf (~15Nm)

Materials:

Plastic, Metal

Arm Material:

Stainless Steel

Cable Length:

~10ft(3m)

Sealing:

Weather Resistant

Weight:

0.42lbs(0.19kg)

Color:

Black, Blue

Max Rotational Angle:

90 degrees Clockwise

Open/Close Time

~18 seconds

Electrical Specifications

Operating Voltage:

12VDC

Cable Type

USB-C male to PS2 male

EVC200 Controller Specifications

Mechanical Specifications

Dimensions:

3.75*2.75*0.80in 9.53*6.99*2.03cm

Materials:

Plastic

Color:

Black

Operational Temperature:

-4F to 104F/-20C to 40C

Weight:

0.11lbs(0.049kg)

Buttons:

LEDs:

Ports:

PS2, 2.5mm Stereo Jack, DC Connector 5.5mm x 2.1mm

Mounting Holes:

Electrical Specifications

Operating Voltage:

12VDC

Voltage Max:

12VDC

Power Max:

Communication Specifications

Z-Wave Transmitter Frequency:

908.42 MHz

Z-Wave Transmitter Range:

~100ft(30m) Indoors

Z-Wave Hub Requirements:

908.42MHz Band

Certifications:

Z-Wave Plus

Accessories

Outdoor 2 Kit

Are you doing an outdoor valve installation? Consider upgrading/adding the ODK2 Kit that comes with a sealed enclosure to protect your Bulldog controller. If you plan on wiring the Bulldog controller into your house from an outdoor valve, leave a note on your purchase, or consider adding the ODK1 for pre-configuration. For more info contact support@econetcontrols.com.

Wired Leak Sensor Kits

Do you have any leak sensitive spots near your valve like a washing machine or water heater? Consider upgrading/adding a Wired Leak Sensor Kit, for more protection and versitility.

Smart Home Z-Wave Hub/Controller

Do you not have an already existing Z-Wave hub? Consider upgrading/adding the smart home controller (Z-Wave/Zigbee/Wifi), for remote control, automation, and future compatibility with other smart home products. If you are just looking for remote valve control and don't plan to add other smart home devices, try our Bulldog-Wifi.

Alternate Mounting Kit

Do you have an unusual, larger, or smaller valve than normal? Consider upgrading/adding the Alternate Mounting Kit to allow the Bulldog motor to mount on your valve. Refer to the Valve Compatibility Chart for more info, or if you are unsure of your valve size and/or type contact support@econetcontrols.com with the diameter of the connected pipe and an image of the valve you plan to install on.

Battery Backup

Do you have power outages in your area? Consider upgrading/adding a battery backup kit that can keep your Bulldog system working for up to 24 hours during a power outage.
