Name: Bulldog Matter over WIFI Starter Kit with 6 sensors - Easy Installation, No Plumbing Required, Smart Home Optional
Brand: EcoNet Controls
SKU: EVC400-MW-SK6
Price: 563.00 CAD
Availability: InStock

Bulldog Matter over WIFI Starter Kit with 6 sensors - Easy Installation, No Plumbing Required, Smart Home Optional

$563.00 CAD

1/7

Bulldog Matter over WIFI Starter Kit with 6 sensors - Easy Installation, No Plumbing Required, Smart Home Optional

SKU: EVC400-MW-SK6

$563.00 CAD

Detailed Installation Instructions

Upgrade to Bulldog-MW SK9 with 9 leak sensors

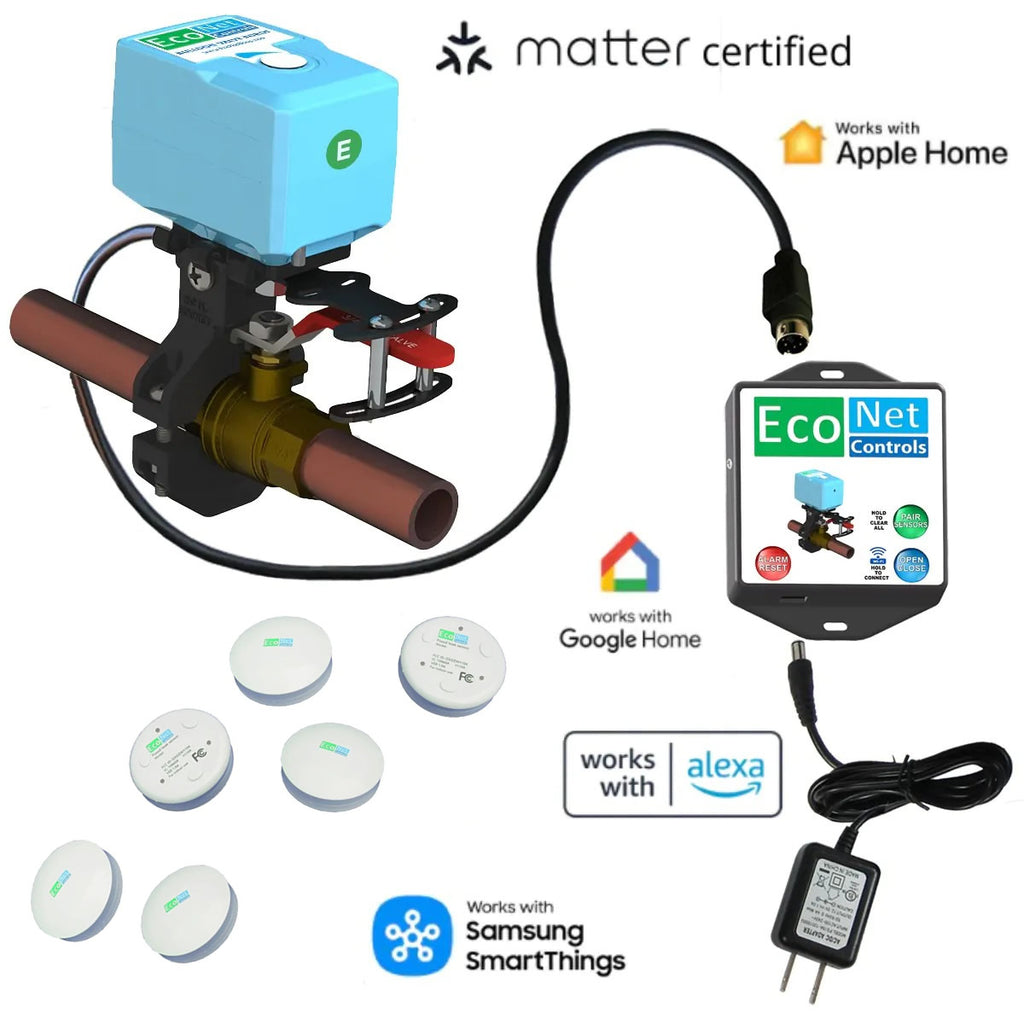

The EcoNet Controls EVC400-MW-SK6 Matter over WIFI bulldog valve controller easy, DIY installation, fitting over existing levered ball valves with no plumbing modifications required. The standard kit includes 6 leak sensors and supports up to 20 sensors, offering flexible protection across your home. With WiFi connectivity, the Bulldog-MW Valve Robot can be monitored and controlled through popular smart home platforms. Featuring high torque and intelligent stroke control, this system is perfect for handling even the toughest valve installations. The product works without a smart home hub or internet connection, right out of the box. It is compatible with popular smart home platforms and apps through the Smartlife app, offering remote access to monitor and shut off your water supply from anywhere using your smartphone.

Automatic Water Shutoff: Prevents costly water damage by shutting off the water supply automatically when leaks are detected.
Supports Up to 20 Leak Sensors: Kit includes 6 leak sensors and can be expanded to protect multiple areas of your home by adding up to 20 sensors.
- Download the Leak Sensor (ELS100) Pairing Guide for step-by-step instructions to quickly connect your sensor to the Bulldog Smart Water Valve system.
Easy Installation: No plumbing modifications or special tools required—fits directly over existing levered ball valves.
Wide Valve Compatibility: Works with most standard ¾", 1", 1.25", and 1.5" valves (Refer to Valve Compatibility Chart).
WiFi Enabled: Connects directly to your WiFi network, no hub needed.
Certified Matter Product: Compatible with matter compatible smart home systems including (but not limited to) Apple Homekit, Google Home, Smartthings, Alexa.
Durability & Performance: High-torque motor and intelligent stroke control ensure reliable operation, even for tough installations.
Flexible Installation: The Bulldog-JW Valve Robot installs easily without requiring any plumbing modifications. Simply place it over your existing levered ball valve, and you're ready to go. With support for most standard valve sizes, the system offers flexibility for use in different areas of your home.
Smart Home or Standalone: This valve robot works independently without requiring a matter compatible smart home system or internet connection. For added convenience, it is compatible with popular smart home platforms and apps, allowing you to monitor and control your water supply from your smartphone or through voice commands.
Advanced Leak Detection: The kit comes with 3 leak sensors, providing coverage in critical areas such as bathrooms, basements, and kitchens. With the ability to support up to 20 leak sensors, you can expand your protection as needed to cover your entire home.

Technical Specifications

ELS100 Wireless Leak Sensor Specifications

Mechanical Specifications

Dimensions:

2.75*2.75*1.00in 6.99*6.99*2.54cm

Materials:

Plastic

Color:

White

Operational Temperature:

-4F to 104F/-20C to 40C

Weight:

0.11lbs(0.052kg)

Alarm Volume:

95dB

Electrical Specifications

Operating Voltage:

12VDC

Voltage Max:

12VDC

Power Max:

Power Idle:

0MW

Batteries

A23 12V x 1

Communication Specifications

RF Transmitter Frequency:

433MHz

RF Transmitter Range:

~130ft(40m) Indoors

Certifications:

FCC

Battery Backup Specifications

Mechanical Specifications

Model:

YB1203000-USB

Dimensions:

4.13"x2.52” x 0.94” 10.50cm x 6.4cm x 2.40cm

Materials:

Thermoplastic, Steel

Color:

Black

Weight:

0.42lbs(0.19kg)

Splitter:

DC5521 1 female to male cable

LED's:

Ports:

USB, DC Connector 5.5mm x 2.1mm

Electrical Specifications

Output Voltage, Connector 5.5mm x 2.1mm:

12VDC(9V-12.6V)

Output Amperage, Connector 5.5mm x 2.1mm:

Output Voltage, USB:

5VDC

Output Amperage, USB:

Capacity:

11.1V/3Ah (33.3Wh)

Certifications:

FCC,CE

Wireless Keyfob Button Specifications

Mechanical Specifications

Model:

HFY512C

Dimensions:

2.50*1.35*0.50in 6.35*3.43*1.27cm

Materials:

Plastic

Color:

White

Weight:

0.04lbs(0.02kg)

Buttons:

LED's:

Electrical Specifications

Operating Voltage:

6VDC

Batteries

CR2032 3V x 2

Communication Specifications

RF Transmitter Frequency:

433MHz

RF Transmitter Range:

~50ft(15m) Indoors

Wired Rope Leak Sensor Specifications

Mechanical Specifications

Dimensions:

0.59*0.59*39.37in 0.40*0.40*100.00cm

Color:

White

Weight:

0.08lbs(0.035kg)

Cable Length:

39.37"(1m) Conductive

Cable Type:

2.5mm Stereo Jack

Wired Probe Leak Sensor Specifications

Mechanical Specifications

Dimensions:

1.50*1.00*0.35in 3.81*2.54*0.89cm

Color:

Black

Weight:

0.02lbs(0.011kg)

Cable Length:

~29"(73.6cm) Non-Conductive

Cable Type:

2.5mm Stereo Jack

AC/DC Adapter Specifications

Mechanical Specifications

Model:

MKC-1201000S

Dimensions:

1.87*1.55*0.90in 4.75*3.95*2.30cm

Materials:

PC+ABS Fireproof

Color:

Black

Cable Length:

~10ft(3m)

Cable Type:

DC Connector 5.5mm x 2.1mm

Electrical Specifications

Output:

12VDC

Input:

Universal 100-240V 50/60Hz

Power Source:

Half-Bridge Type

Protection:

Over Current/Voltage/Short Circuit Protection

Certifications:

CE, GS, BS, UL, FCC, PSE, Kc, SAA, CB, S-MARK

Bulldog Motor Specifications

Mechanical Specifications

Dimensions:

3.65*2.50*2.60in 9.27*6.35*6.60cm

Torque:

11lbf (~15Nm)

Materials:

Plastic, Metal

Arm Material:

Stainless Steel

Cable Length:

~10ft(3m)

Sealing:

Weather Resistant

Weight:

0.42lbs(0.19kg)

Color:

Black, Blue

Max Rotational Angle:

90 degrees Clockwise

Open/Close Time

~18 seconds

Electrical Specifications

Operating Voltage:

12VDC

Cable Type

USB-C male to PS2 male

EVC400 Controller Specifications

Mechanical Specifications

Dimensions:

3.88*2.94*1.06in 9.86*7.47*2.69cm

Materials:

Plastic

Color:

Black

Operational Temperature:

-4F to 104F/-20C to 40C

Weight:

0.19lbs(0.085kg)

Buttons:

LEDs:

Alarm Volume:

110dB

Ports:

PS2, 2.5mm Stereo Jack, DC Connector 5.5mm x 2.1mm

Mounting Holes:

Electrical Specifications

Operating Voltage:

12VDC

Voltage Max:

12VDC

Power Max:

Communication Specifications

RF Transmitter Frequency:

433MHz

RF Transmitter Range:

~130ft(40m) Indoors

Wi-Fi Transmitter Standard:

2.4GHz b/g/n

Wi-Fi Transmitter Range:

~150ft(45m) Indoors

Router Requirements:

Dual Band SSID/dedicated 2.4GHz SSID

Certifications:

FCC

Accessories

Wired Leak Sensor Kits

Do you have any leak sensitive spots near your valve like a washing machine or water heater? Consider upgrading/adding a Wired Leak Sensor Kit, for more protection and versitility.

Battery Backup

Do you have power outages in your area? Consider upgrading/adding a battery backup kit that can keep your Bulldog system working for up to 24 hours during a power outage.

Alternate Mounting Kit

Do you have an unusual, larger, or smaller valve than normal? Consider upgrading/adding the Alternate Mounting Kit to allow the Bulldog motor to mount on your valve. Refer to the Valve Compatibility Chart for more info, or if you are unsure of your valve size and/or type contact support@econetcontrols.com with the diameter of the connected pipe and an image of the valve you plan to install on.

Wall Mounted Emergency Shutoff Button

Do you want better access to your Bulldog valve? Consider upgrading/adding a wall mounted emergency shutoff for the Bulldog-JW. With the wall mounted emergency shutoff, you can ensure you have quick access to emergency close your valve in the case of a leak.
