Bulldog Valve Robot, Relay Contact| Free Shipping

SKU: EVC200-RC-HC2LXL

$311.00 CAD

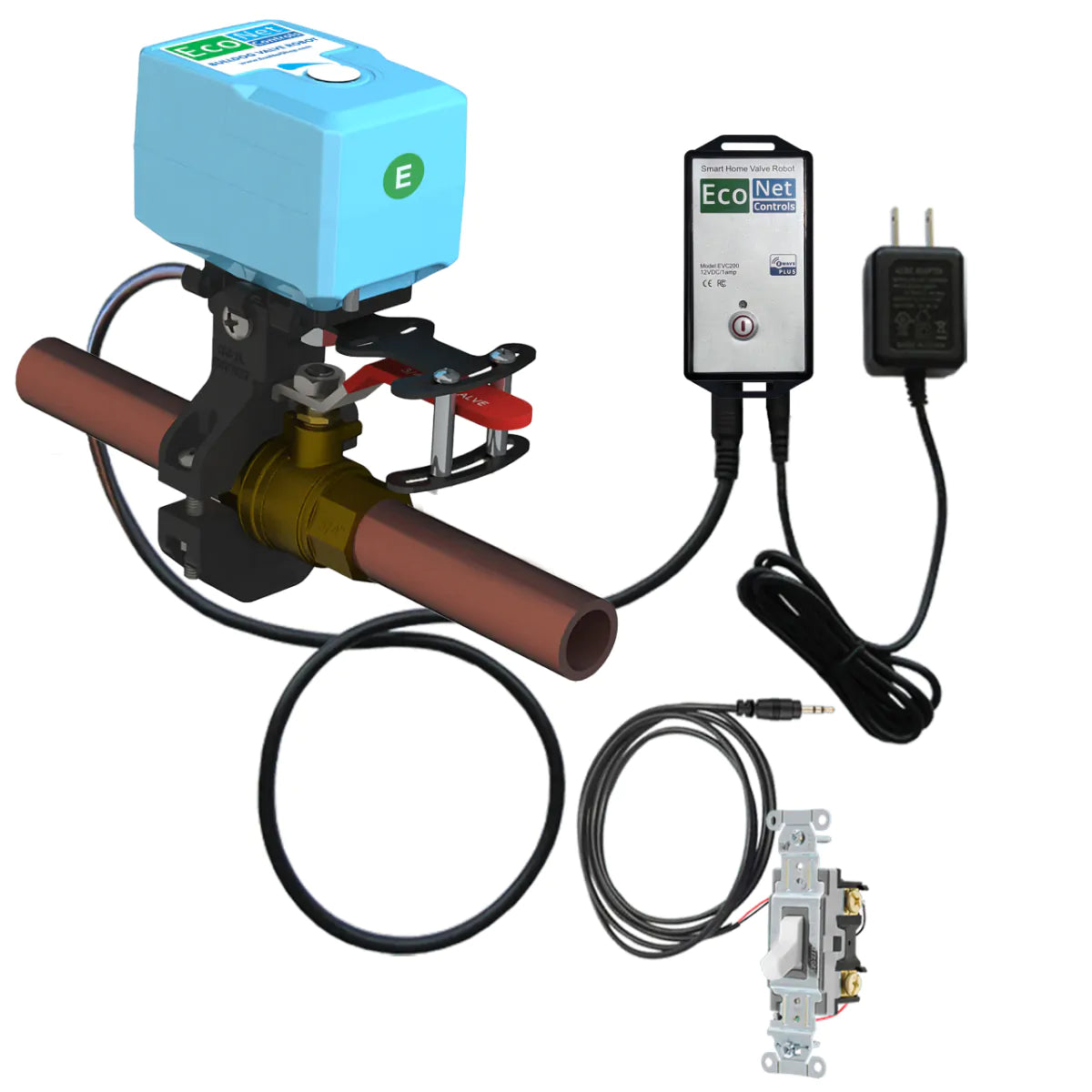

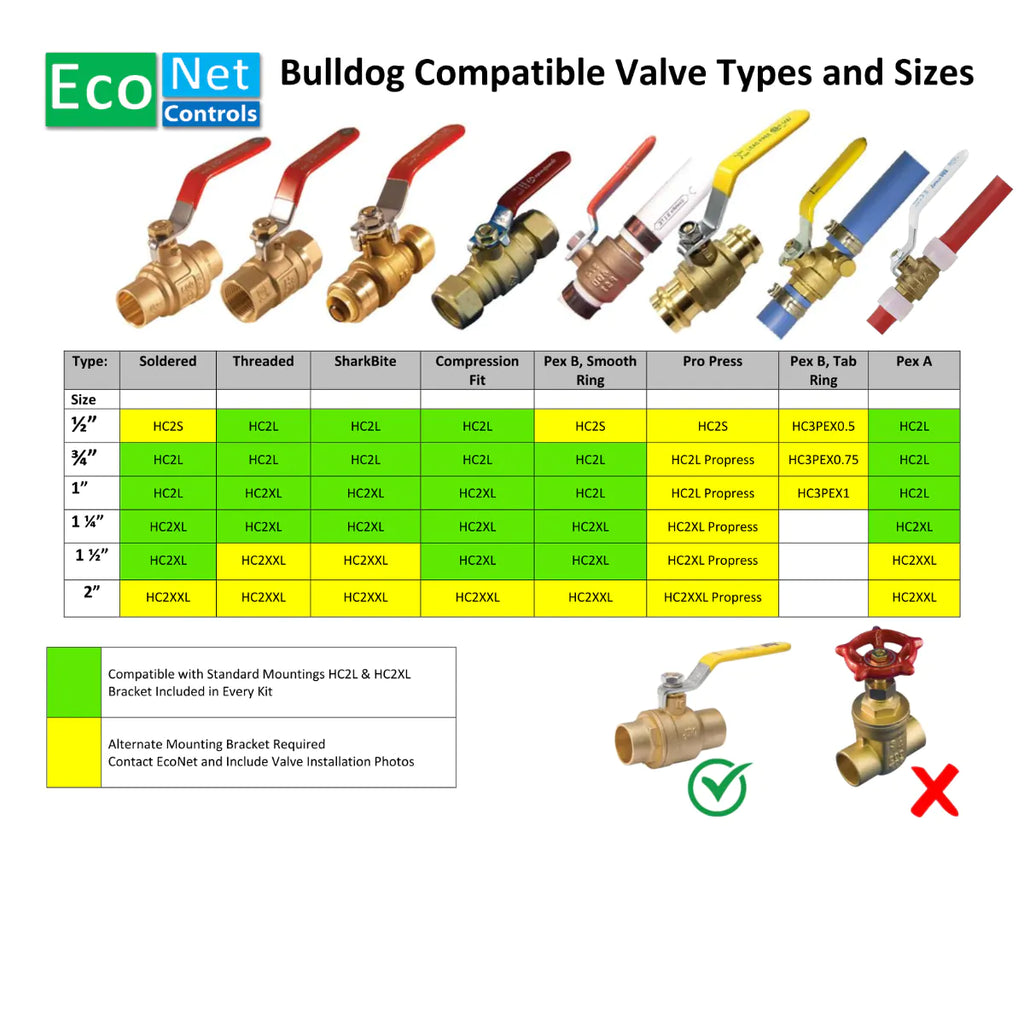

Control open close with relay contacts or switch. Compatible with any system that supports relay contact control including most home security systems. Also supports open/close valve control with a wired switch. High torque and intelligent stroke control make Econet's Bulldog Valve Robot ideal for the toughest valves and installations. This smart valve controller kit fits most standard valves from ¾" to 1 ½" and automates water flow control, allowing you to remotely open or close your valves in seconds using the toggle switch included, or any alternative relay contact control connected to the 2.5mm stereo jack. Using a compatible smart home controller/hub can allow you to see the state of your valve in a compatible app, but not control or automate the Bulldog Valve Robot remotely.

Technical Specifications

Bulldog Motor Specifications

Mechanical Specifications

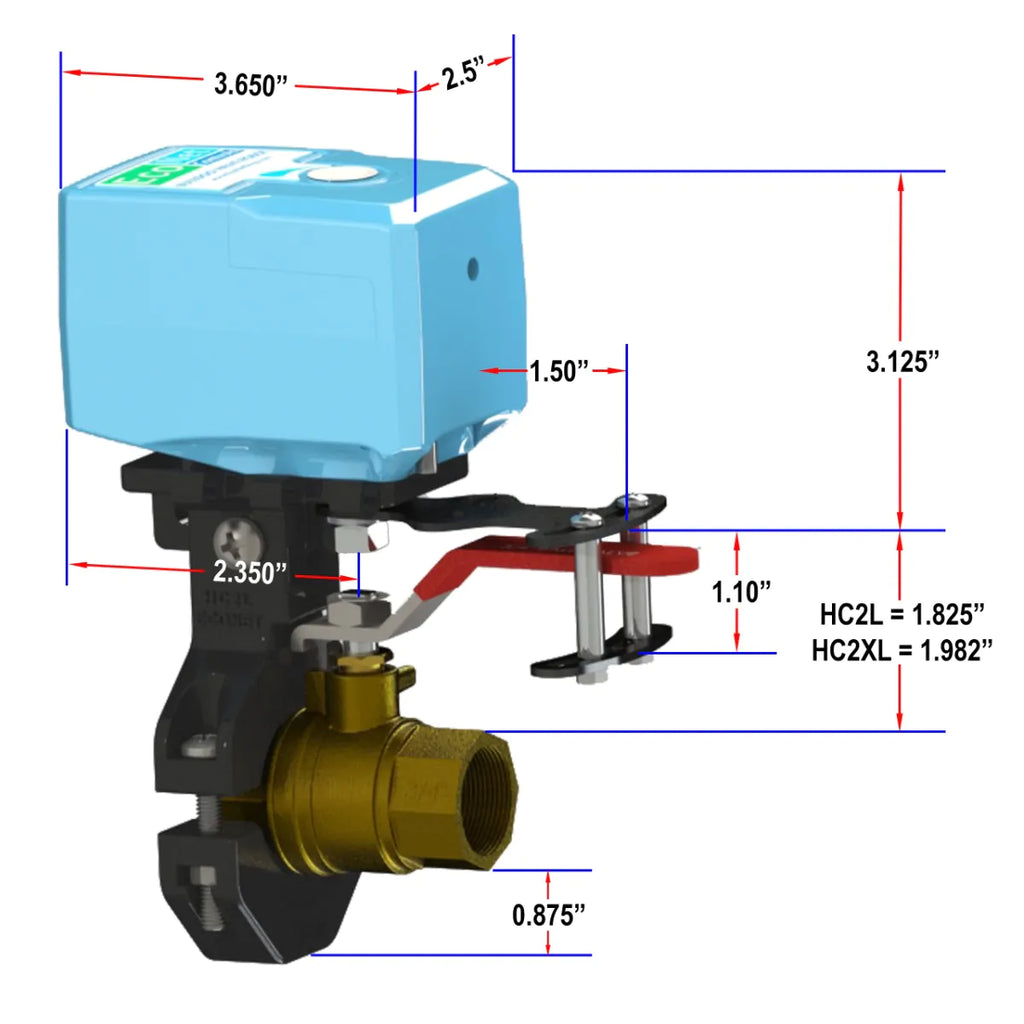

Dimensions:

3.65*2.50*2.60in 9.27*6.35*6.60cm

Torque:

11lbf (~15Nm)

Materials:

Plastic, Metal

Arm Material:

Stainless Steel

Cable Length:

~10ft(3m)

Sealing:

Weather Resistant

Weight:

0.42lbs(0.19kg)

Color:

Black, Blue

Max Rotational Angle:

90 degrees Clockwise

Open/Close Time

~18 seconds

Electrical Specifications

Operating Voltage:

12VDC

Cable Type

USB-C male to PS2 male

EVC200 Controller Specifications

Mechanical Specifications

Dimensions:

3.75*2.75*0.80in 9.53*6.99*2.03cm

Materials:

Plastic

Color:

Black

Operational Temperature:

-4F to 104F/-20C to 40C

Weight:

0.11lbs(0.049kg)

Buttons:

LEDs:

Ports:

PS2, 2.5mm Stereo Jack, DC Connector 5.5mm x 2.1mm

Mounting Holes:

Electrical Specifications

Operating Voltage:

12VDC

Voltage Max:

12VDC

Power Max:

Communication Specifications

Z-Wave Transmitter Frequency:

908.42 MHz

Z-Wave Transmitter Range:

~100ft(30m) Indoors

Z-Wave Hub Requirements:

908.42MHz Band

Certifications:

Z-Wave Plus

AC/DC Adapter Specifications

Mechanical Specifications

Model:

MKC-1201000S

Dimensions:

1.87*1.55*0.90in 4.75*3.95*2.30cm

Materials:

PC+ABS Fireproof

Color:

Black

Cable Length:

~10ft(3m)

Cable Type:

DC Connector 5.5mm x 2.1mm

Electrical Specifications

Output:

12VDC

Input:

Universal 100-240V 50/60Hz

Power Source:

Half-Bridge Type

Protection:

Over Current/Voltage/Short Circuit Protection

Certifications:

CE, GS, BS, UL, FCC, PSE, Kc, SAA, CB, S-MARK

Mechanical Specifications

Model:

1451-2W

Dimensions:

4.50*1.55*1.00in 11.43*3.94*2.54cm

Materials:

Thermoplastic, Steel

Color:

White

Weight:

0.3lbs(0.04kg)

Cable Length:

~10ft(3m)

Cable Type:

2.5mm Stereo Jack

Electrical Specifications

HP Rating:

1/2HP-120V

Max Amperage:

12 Amp

Rated Voltage

120VAC

Terminal Accomadations:

Side wiring accepts #10, #12, #14
AWG, or #10, #12 copper clad (CC) wire,
Quickwire push-in terminals accept #14 AWG solid copper (CU) wire only

Certifications:

UL,CSA

Battery Backup Specifications

Mechanical Specifications

Model:

YB1203000-USB

Dimensions:

4.13"x2.52” x 0.94” 10.50cm x 6.4cm x 2.40cm

Materials:

Thermoplastic, Steel

Color:

Black

Weight:

0.42lbs(0.19kg)

Splitter:

DC5521 1 female to male cable

LED's:

Ports:

USB, DC Connector 5.5mm x 2.1mm

Electrical Specifications

Output Voltage, Connector 5.5mm x 2.1mm:

12VDC(9V-12.6V)

Output Amperage, Connector 5.5mm x 2.1mm:

Output Voltage, USB:

5VDC

Output Amperage, USB:

Capacity:

11.1V/3Ah (33.3Wh)

Certifications:

FCC,CE

Outdoor Kit 2 Enclosure Specifications

Mechanical Specifications

Dimensions:

7.50*7.60*3.50in 19.05*19.30*8.89cm

Color:

Light Green

Weight:

0.99lbs(0.449kg)

Material:

PVC

Sealing:

Weather Resistant

Accessories

Outdoor 2 Kit

Are you doing an outdoor valve installation? Consider upgrading/adding the ODK2 Kit that comes with a sealed enclosure to protect your Bulldog controller. If you plan on wiring the Bulldog controller into your house from an outdoor valve, leave a note on your purchase, or consider adding the ODK1 for pre-configuration. For more info contact support@econetcontrols.com.

Wired Leak Sensor Kits

Do you have any leak sensitive spots near your valve like a washing machine or water heater? Consider upgrading/adding a Wired Leak Sensor Kit, for more protection and versitility.

Battery Backup

Do you have power outages in your area? Consider upgrading/adding a battery backup kit that can keep your Bulldog system working for up to 24 hours during a power outage.

Repair/Return Policy

If you are not satisfied with our product or it does not function as expected or required, you can return the product for a refund or credit within 30 days of the original ship date. The product must be returned in its original packing in new condition to qualify for a full refund otherwise restocking charges may apply.

Although we have designed and tested our products and systems for reliable 24/7 operation, the nature of wireless control and automation environment can cause malfunctions. Please contact our customer service department at ph. 1-888-320-9188 or email support@EcoNetControls.com with details of your product or system malfunction. Please provide your contact details, the product model and serial number as well as any details of the malfunction. Our support specialist will review the problem and assist you in providing the best solution for your particular circumstances. If necessary we will provide an RMA number (Return Material Authorization) for the product return. Typical repair turn around time is 2-10 days. There are no charges for parts or labor for warranty repairs and we will return the product with shipping charges prepaid. We will provide a repair cost quote for non-warranty repairs.

Warranty

All EcoNet Controls products have a 1 year parts and labor warranty from original ship date.

EcoNet Controls Inc. standard limited warranty is limited to the value of system/products purchased. In no event will Econet Controls be liable for any consequential, incidental, exemplary, or special damages including any water damage
