Bulldog Valve Robot EVC200-IV - Z-Wave Plus Automatic Water Shutoff System with Integrated 1" Valve, Smart Home Leak Detection | Free Shipping
1/2

Bulldog Valve Robot EVC200-IV - Z-Wave Plus Automatic Water Shutoff System with Integrated 1" Valve, Smart Home Leak Detection | Free Shipping

SKU: EVC200-IV
$339.00 CAD

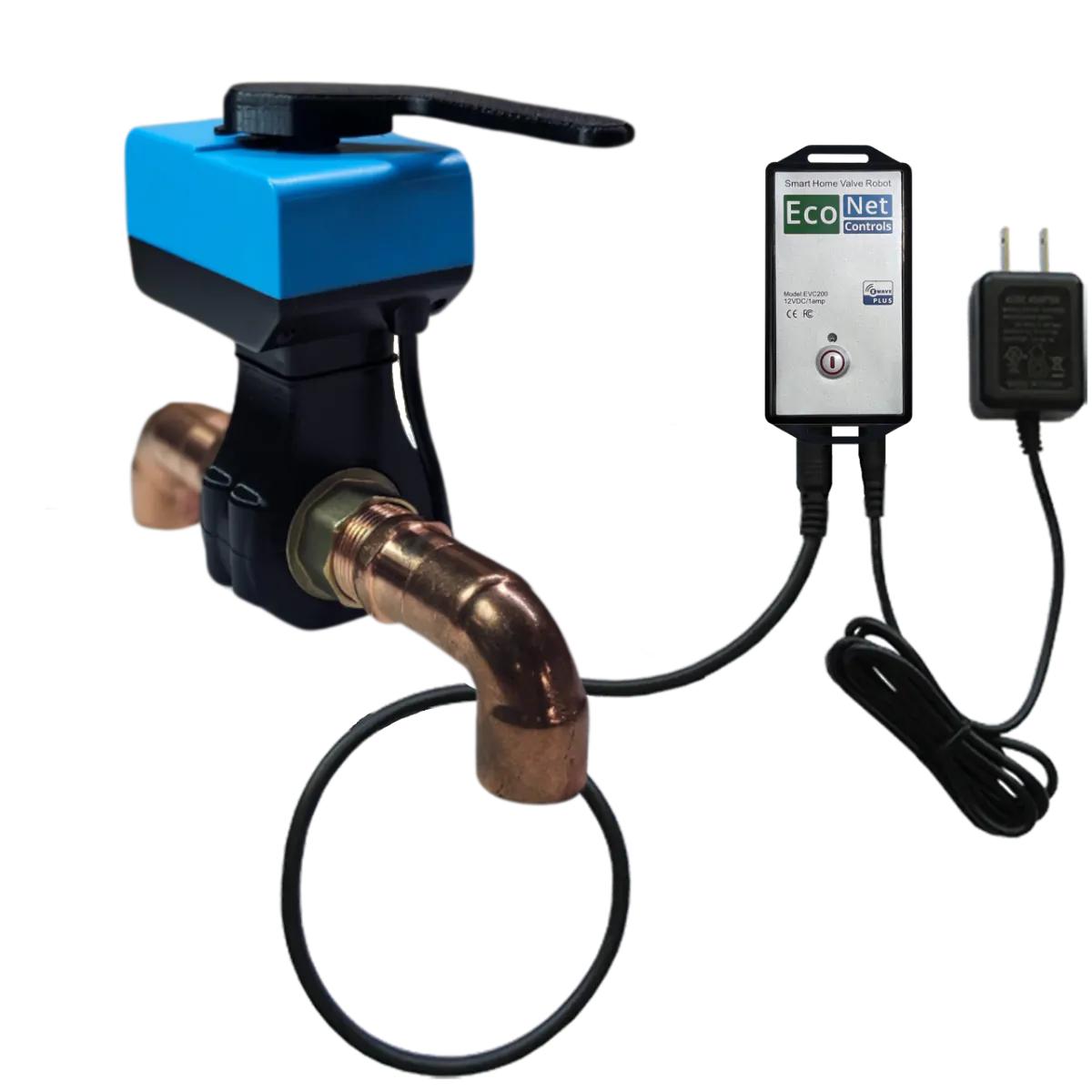

Control your water valve remotely with the EcoNet Controls Smart Valve Controller Kit, a Z-Wave Plus certified device designed to easily integrate directly into your smart home. Z-Wave Plus Certified and compatible with Amazon Alexa, Google Home, SmartThings, and IFTTT, this valve robot allows you to remotely control your water supply, helping you prevent leaks and avoid expensive insurance claims when paired with other Z-Wave sensors in your home. Designed for easy installation with an integrated 1" NPT valve, the Bulldog Valve Robot ensures fast and reliable performance with a high-torque motor capable of operating tough valves. The system also features a pairing button, LED status indicators, and a robust wireless range of over 30 meters. Perfect for any smart home setup, the Bulldog Valve Robot helps you monitor and control your water supply from anywhere using  a smart home app.

Insurance Savings & Peace of Mind:
Installing a smart water shut-off system like the EcoNet Controls Smart Valve Controller Kit paired with Leak Sensors can help you save on homeowners insurance premiums. Many insurance companies offer discounts of up to 10% for homes equipped with water damage prevention devices. Water leaks are one of the leading causes of home insurance claims, with an average repair cost of over $10,000. With proactive leak prevention, you can avoid expensive repairs and enjoy potential long-term savings.

  • Smart Home Compatibility: Compatible with most professional category controllers/hubs that include Z-Wave. Tested integrations include Vera, Smartthings, Homeseer, Wink, Nexia, Honeywell, Universal Devices, Go Control, and Clarehome.
  • Z-Wave Plus Certified: Ensures optimal wireless performance with an extended range and enhanced security features. Optional WiFi integration is available.
  • High Torque Motor: Delivers 11lbf (~15Nm) of torque, ensuring the valve opens or closes in just 18 seconds for quick response times.

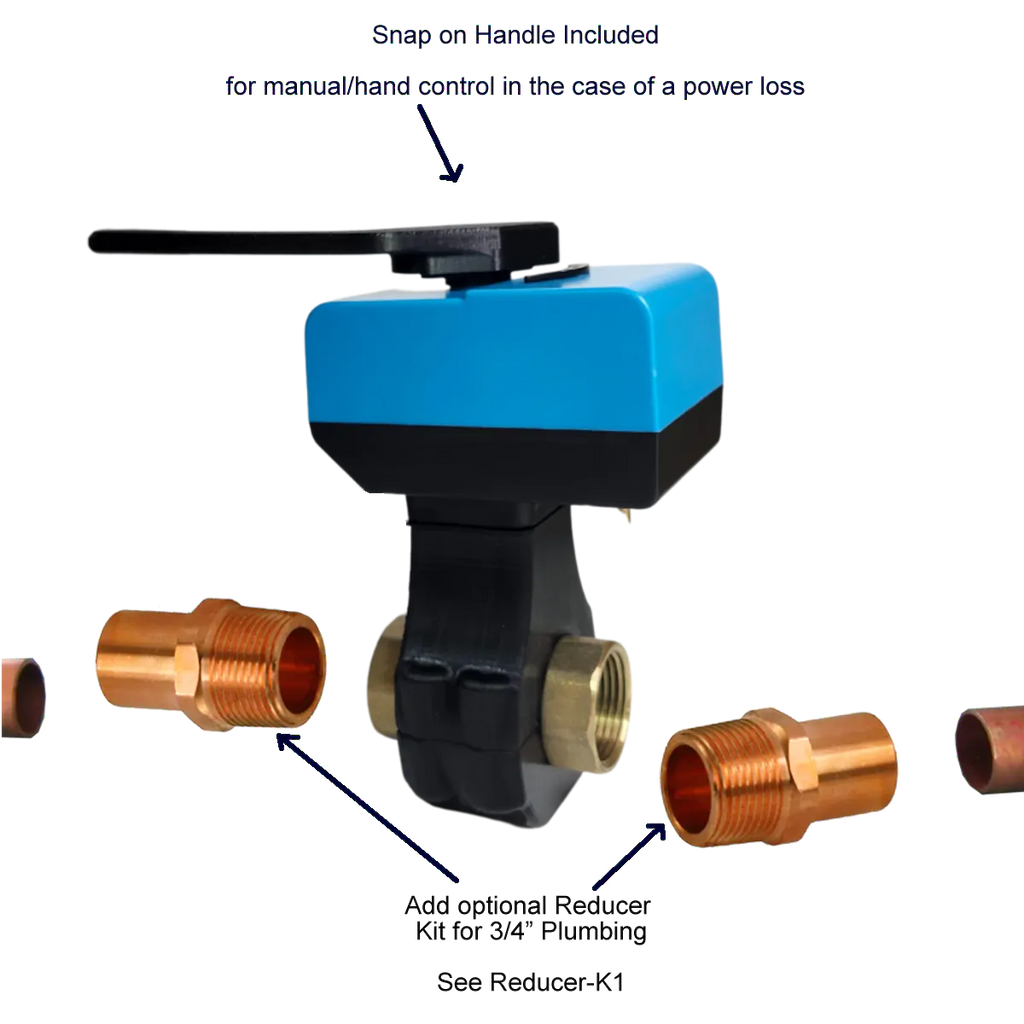

  • Integrated 1" Valve: Comes with a pre-installed 1" threaded female valve, 2NPT, making installation straightforward for any home plumbing system (plumbing required).
  • Easy Installation & Pairing: Features an open/close button for manual operation and a pairing/inclusion button for simple setup.

Technical Specifications

Bulldog Motor Specifications


Mechanical Specifications

Dimensions: 3.65*2.50*2.60in   9.27*6.35*6.60cm
Torque:11lbf (~15Nm)
Materials: Plastic, Metal
Arm Material:Stainless Steel
Cable Length:~10ft(3m)
Sealing:Weather Resistant
Weight: 0.42lbs(0.19kg)
Color:Black, Blue
Max Rotational Angle:    90 degrees Clockwise
Open/Close Time~18 seconds


Electrical Specifications

Operating Voltage:
12VDC
Cable Type USB-C male to PS2 male


AC/DC Adapter Specifications


Mechanical Specifications

Model: MKC-1201000S
Dimensions: 1.87*1.55*0.90in   4.75*3.95*2.30cm
Materials: PC+ABS Fireproof
Color:Black
Cable Length:~10ft(3m)
Cable Type: DC Connector 5.5mm x 2.1mm


Electrical Specifications

Output: 12VDC
Input:Universal 100-240V 50/60Hz
Power Source: Half-Bridge Type
Protection: Over Current/Voltage/Short Circuit Protection
Certifications: CE, GS, BS, UL, FCC, PSE, Kc, SAA, CB, S-MARK



Wired Probe Leak Sensor Specifications


Mechanical Specifications

Dimensions:            1.50*1.00*0.35in   3.81*2.54*0.89cm
Color:Black
Weight:0.02lbs(0.011kg)
Cable Length:~29"(73.6cm) Non-Conductive
Cable Type: 2.5mm Stereo Jack



Wired Rope Leak Sensor Specifications


Mechanical Specifications

Dimensions:            0.59*0.59*39.37in   0.40*0.40*100.00cm
Color:White
Weight:0.08lbs(0.035kg)
Cable Length:39.37"(1m) Conductive
Cable Type: 2.5mm Stereo Jack



Battery Backup Specifications


Mechanical Specifications

Model:YB1203000-USB
Dimensions: 4.13"x2.52” x 0.94”               10.50cm x 6.4cm x 2.40cm
Materials: Thermoplastic, Steel
Color:Black
Weight: 0.42lbs(0.19kg)
Splitter:DC5521 1 female to male cable
LED's: 5
Ports:USB, DC Connector 5.5mm x 2.1mm


Electrical Specifications

Output Voltage, Connector 5.5mm x 2.1mm:
12VDC(9V-12.6V)
Output Amperage, Connector 5.5mm x 2.1mm:
3A
Output Voltage, USB:
5VDC
Output Amperage, USB:
2A
Capacity:11.1V/3Ah (33.3Wh)
Certifications:FCC,CE


Outdoor Kit 2 Enclosure Specifications


Mechanical Specifications

Dimensions:            7.50*7.60*3.50in   19.05*19.30*8.89cm
Color:Light Green
Weight:0.99lbs(0.449kg)
Material:PVC
Sealing:Weather Resistant



EVC200 Controller Specifications


Mechanical Specifications

Dimensions:  3.75*2.75*0.80in   9.53*6.99*2.03cm
Materials:  Plastic
Color:Black
Operational Temperature: -4F to 104F/-20C to 40C
Weight:0.11lbs(0.049kg)
Buttons:
LEDs:
Ports:  PS2, 2.5mm Stereo Jack,  DC Connector 5.5mm x 2.1mm
Mounting Holes:2


Electrical Specifications

Operating Voltage:12VDC
 Voltage Max:12VDC
Power Max:6W


Communication Specifications

Z-Wave Transmitter Frequency:908.42 MHz
Z-Wave Transmitter Range: ~100ft(30m) Indoors
Z-Wave Hub Requirements:     908.42MHz Band
Certifications:    Z-Wave Plus


Accessories

Outdoor 2 Kit

Are you doing an outdoor valve installation?  Consider upgrading/adding the ODK2 Kit that comes with a sealed enclosure to protect your Bulldog controller. If you plan on wiring the Bulldog controller into your house from an outdoor valve, leave a note on your purchase, or consider adding the ODK1 for pre-configuration. For more info contact support@econetcontrols.com.

Outdoor 2 Kit

Wired Leak Sensor Kits

Do you have any leak sensitive spots near your valve like a washing machine or water heater? Consider upgrading/adding a Wired Leak Sensor Kit, for more protection and versitility.

Wired Leak Sensor Kits

Battery Backup

Do you have power outages in your area? Consider upgrading/adding a battery backup kit that can keep your Bulldog system working for up to 24 hours during a power outage.

Battery Backup

Repair/Return Policy

If you are not satisfied with our product or it does not function as expected or required, you can return the product for a refund or credit within 30 days of the original ship date. The product must be returned in its original packing in new condition to qualify for a full refund otherwise restocking charges may apply.

Although we have designed and tested our products and systems for reliable 24/7 operation, the nature of wireless control and automation environment can cause malfunctions. Please contact our customer service department at ph. 1-888-320-9188 or email support@EcoNetControls.com with details of your product or system malfunction. Please provide your contact details, the product model and serial number as well as any details of the malfunction. Our support specialist will review the problem and assist you in providing the best solution for your particular circumstances. If necessary we will provide an RMA number (Return Material Authorization) for the product return. Typical repair turn around time is 2-10 days. There are no charges for parts or labor for warranty repairs and we will return the product with shipping charges prepaid. We will provide a repair cost quote for non-warranty repairs.


Warranty

All EcoNet Controls products have a 1 year parts and labor warranty from original ship date.

EcoNet Controls Inc. standard limited warranty is limited to the value of system/products purchased. In no event will Econet Controls be liable for any consequential, incidental, exemplary, or special damages including any water damage
