Name: Bulldog-IV-RC-MW Relay Contact Starter Kit, Smart Home Optional, 1" Threaded Valve
Brand: EcoNet Controls
SKU: EVC400-IV-RC-MW-HC2LXL
Price: 355.00 CAD
Availability: InStock

Bulldog-IV-RC-MW Relay Contact Starter Kit, Smart Home Optional, 1" Threaded Valve

$355.00 CAD

1/3

Bulldog-IV-RC-MW Relay Contact Starter Kit, Smart Home Optional, 1" Threaded Valve

SKU: EVC400-IV-RC-MW-HC2LXL

$355.00 CAD

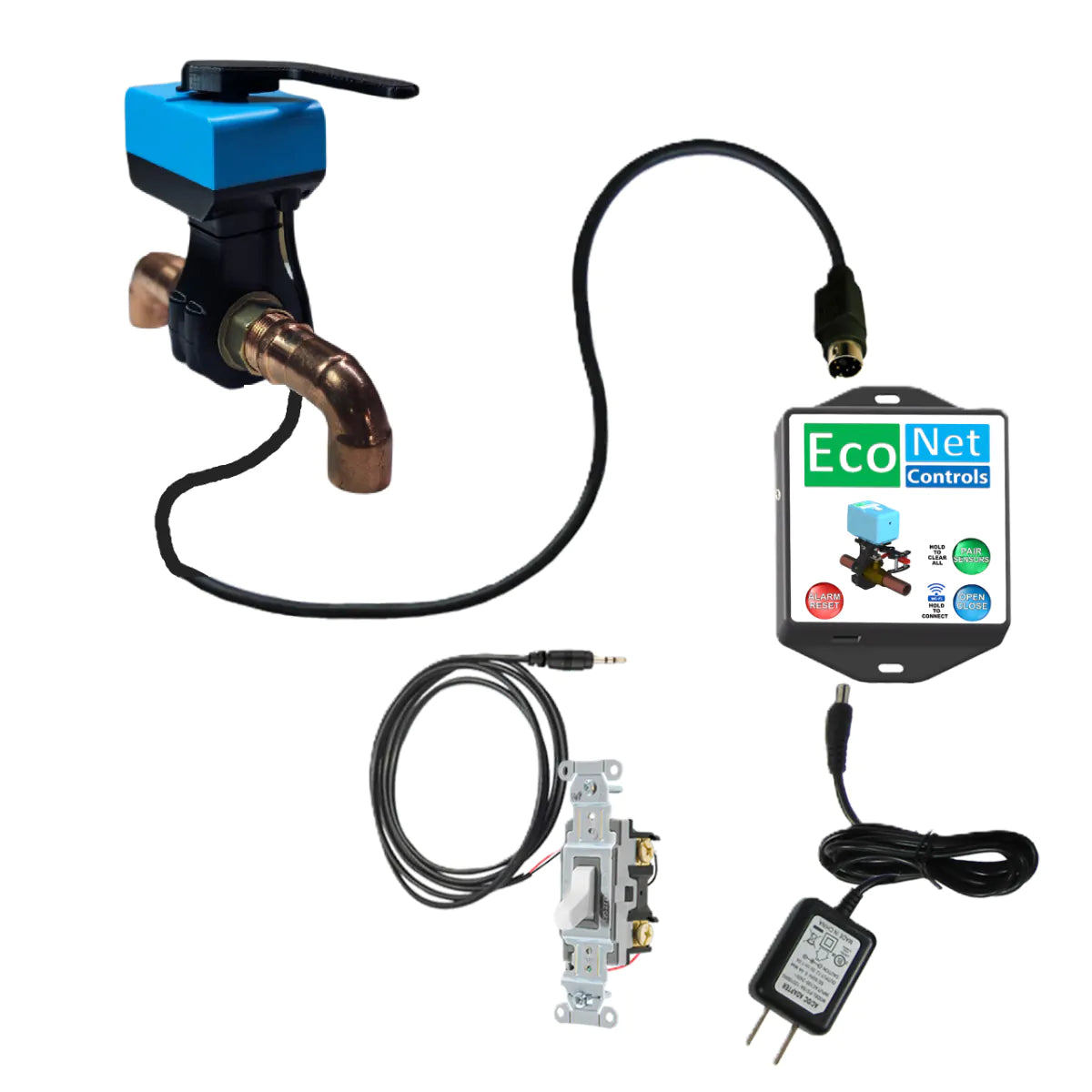

Control open close with relay contacts or switch. Compatible with any system that supports relay contact control including most home security systems. Also supports open/close valve control with a wired switch. Designed for easy installation with an integrated 1" NPT valve, the Bulldog Valve Robot ensures fast and reliable performance with a high-torque motor capable of operating tough valves, allowing you to remotely open or close your valves in seconds using the toggle switch included, or any alternative relay contact control connected to the 2.5mm stereo jack. Using the SmartLife app can allow you to see the state of your valve remotely, but not control or automate the Bulldog Valve Robot remotely. Additional leak sensors can be added, offering a comprehensive solution for water leak detection and automatic water shutoff, preventing water damage in your home.

Technical Specifications

Bulldog Motor Specifications

Mechanical Specifications

Dimensions:

3.65*2.50*2.60in 9.27*6.35*6.60cm

Torque:

11lbf (~15Nm)

Materials:

Plastic, Metal

Arm Material:

Stainless Steel

Cable Length:

~10ft(3m)

Sealing:

Weather Resistant

Weight:

0.42lbs(0.19kg)

Color:

Black, Blue

Max Rotational Angle:

90 degrees Clockwise

Open/Close Time

~18 seconds

Electrical Specifications

Operating Voltage:

12VDC

Cable Type

USB-C male to PS2 male

EVC400 Controller Specifications

Mechanical Specifications

Dimensions:

3.88*2.94*1.06in 9.86*7.47*2.69cm

Materials:

Plastic

Color:

Black

Operational Temperature:

-4F to 104F/-20C to 40C

Weight:

0.19lbs(0.085kg)

Buttons:

LEDs:

Alarm Volume:

110dB

Ports:

PS2, 2.5mm Stereo Jack, DC Connector 5.5mm x 2.1mm

Mounting Holes:

Electrical Specifications

Operating Voltage:

12VDC

Voltage Max:

12VDC

Power Max:

Communication Specifications

RF Transmitter Frequency:

433MHz

RF Transmitter Range:

~130ft(40m) Indoors

Wi-Fi Transmitter Standard:

2.4GHz b/g/n

Wi-Fi Transmitter Range:

~150ft(45m) Indoors

Router Requirements:

Dual Band SSID/dedicated 2.4GHz SSID

Certifications:

FCC

ELS100 Wireless Leak Sensor Specifications

Mechanical Specifications

Dimensions:

2.75*2.75*1.00in 6.99*6.99*2.54cm

Materials:

Plastic

Color:

White

Operational Temperature:

-4F to 104F/-20C to 40C

Weight:

0.11lbs(0.052kg)

Alarm Volume:

95dB

Electrical Specifications

Operating Voltage:

12VDC

Voltage Max:

12VDC

Power Max:

Power Idle:

0MW

Batteries

A23 12V x 1

Communication Specifications

RF Transmitter Frequency:

433MHz

RF Transmitter Range:

~130ft(40m) Indoors

Certifications:

FCC

Mechanical Specifications

Model:

1451-2W

Dimensions:

4.50*1.55*1.00in 11.43*3.94*2.54cm

Materials:

Thermoplastic, Steel

Color:

White

Weight:

0.3lbs(0.04kg)

Cable Length:

~10ft(3m)

Cable Type:

2.5mm Stereo Jack

Electrical Specifications

HP Rating:

1/2HP-120V

Max Amperage:

12 Amp

Rated Voltage

120VAC

Terminal Accomadations:

Side wiring accepts #10, #12, #14
AWG, or #10, #12 copper clad (CC) wire,
Quickwire push-in terminals accept #14 AWG solid copper (CU) wire only

Certifications:

UL,CSA

Battery Backup Specifications

Mechanical Specifications

Model:

YB1203000-USB

Dimensions:

4.13"x2.52” x 0.94” 10.50cm x 6.4cm x 2.40cm

Materials:

Thermoplastic, Steel

Color:

Black

Weight:

0.42lbs(0.19kg)

Splitter:

DC5521 1 female to male cable

LED's:

Ports:

USB, DC Connector 5.5mm x 2.1mm

Electrical Specifications

Output Voltage, Connector 5.5mm x 2.1mm:

12VDC(9V-12.6V)

Output Amperage, Connector 5.5mm x 2.1mm:

Output Voltage, USB:

5VDC

Output Amperage, USB:

Capacity:

11.1V/3Ah (33.3Wh)

Certifications:

FCC,CE

AC/DC Adapter Specifications

Mechanical Specifications

Model:

MKC-1201000S

Dimensions:

1.87*1.55*0.90in 4.75*3.95*2.30cm

Materials:

PC+ABS Fireproof

Color:

Black

Cable Length:

~10ft(3m)

Cable Type:

DC Connector 5.5mm x 2.1mm

Electrical Specifications

Output:

12VDC

Input:

Universal 100-240V 50/60Hz

Power Source:

Half-Bridge Type

Protection:

Over Current/Voltage/Short Circuit Protection

Certifications:

CE, GS, BS, UL, FCC, PSE, Kc, SAA, CB, S-MARK

Accessories

Battery Backup

Do you have power outages in your area? Consider upgrading/adding a battery backup kit that can keep your Bulldog system working for up to 24 hours during a power outage.
