Bulldog-IV-WIFI - Works with Smartlife App | Plumbing Required | Free Shipping
1/2

Bulldog-IV-WIFI - Works with Smartlife App | Plumbing Required | Free Shipping

SKU: EVC300-IV-WIFI
$339.00 CAD

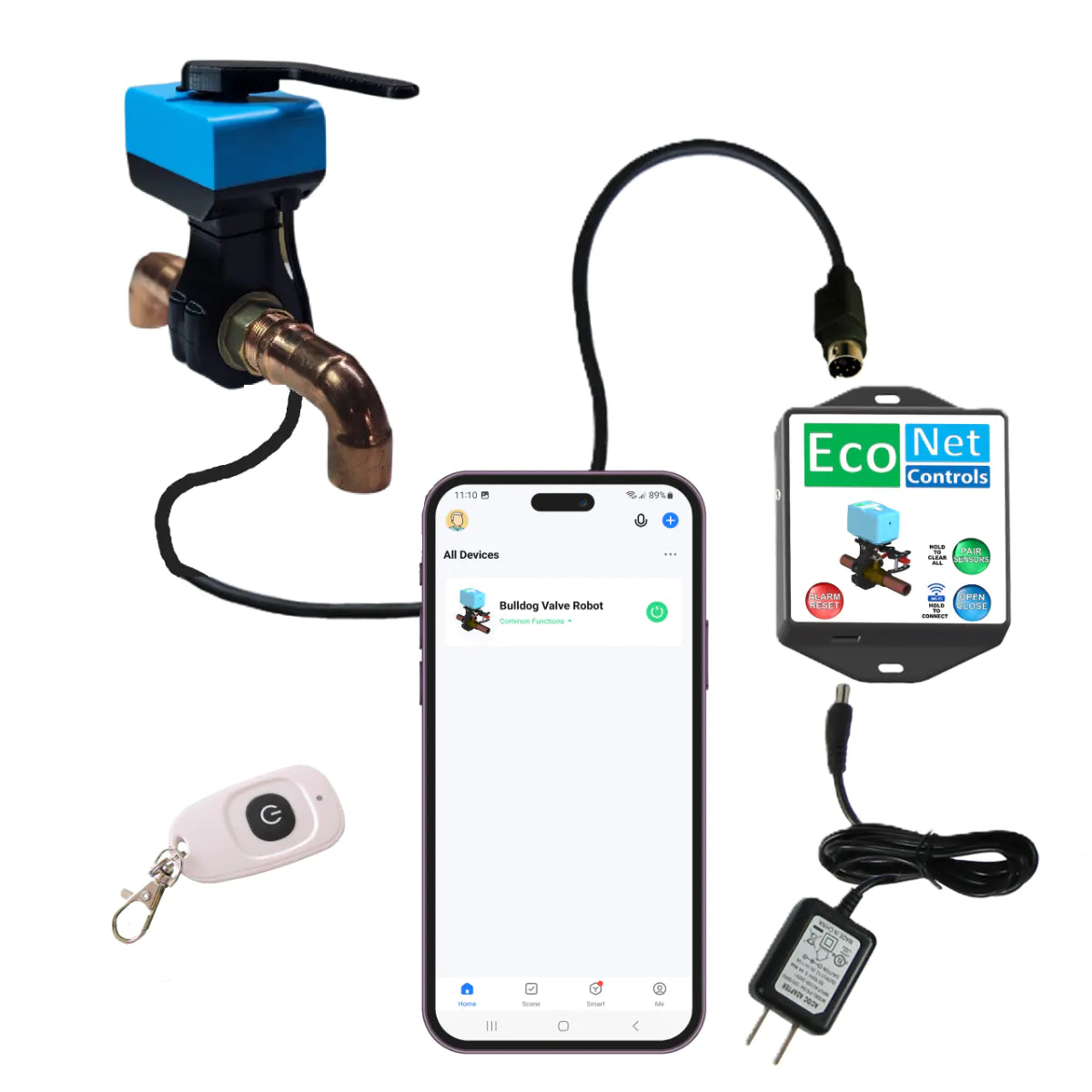

Bulldog-WIFI Valve Robot conveniently allows you automate your water shut-off system without the need for a separate hub. With direct WIFI connectivity, you can monitor and manage your water supply from anywhere, protecting your home from water damage with ease. Whether you’re at home or on vacation, this system provides peace of mind by allowing full control over your water valves through a user-friendly app or voice commands. Designed for easy installation with an integrated 1" NPT valve, the Bulldog Valve Robot ensures fast and reliable performance with a high-torque motor capable of operating tough valves.

  • SmartLife App: Control the valve from your smartphone using the SmartLife app, offering full remote monitoring and automation.
  • Easy Installation: No plumbing modifications or special tools required—fits directly over existing levered ball valves.
  • Wifi Connectivity: No hub required, connects directly to Wi-Fi.
  • Integrated Valve: Integrated valve design for reliable performance and strength (Requires Plumbing)
  • Durability & Performance: High-torque motor and intelligent stroke control ensure reliable operation, even for tough installations.

Technical Specifications

Bulldog Motor Specifications


Mechanical Specifications

Dimensions: 3.65*2.50*2.60in   9.27*6.35*6.60cm
Torque:11lbf (~15Nm)
Materials: Plastic, Metal
Arm Material:Stainless Steel
Cable Length:~10ft(3m)
Sealing:Weather Resistant
Weight: 0.42lbs(0.19kg)
Color:Black, Blue
Max Rotational Angle:    90 degrees Clockwise
Open/Close Time~18 seconds


Electrical Specifications

Operating Voltage:
12VDC
Cable Type USB-C male to PS2 male


EVC300 Controller Specifications


Mechanical Specifications

Dimensions: 3.88*2.94*1.06in   9.86*7.47*2.69cm
Materials:  Plastic
Color:Black
Operational Temperature: -4F to 104F/-20C to 40C
Weight:   0.19lbs(0.085kg)
Buttons:
LEDs:
Alarm Volume:110dB
Ports:  PS2, 2.5mm Stereo Jack,  DC Connector 5.5mm x 2.1mm
Mounting Holes:2


Electrical Specifications

Operating Voltage:12VDC
Voltage Max:12VDC
Power Max:6W


Communication Specifications

RF Transmitter Frequency: 433MHz
RF Transmitter Range:   ~130ft(40m) Indoors
Wi-Fi Transmitter Standard:  2.4GHz b/g/n
Wi-Fi Transmitter Range: ~150ft(45m) Indoors
Router Requirements: Dual Band SSID/dedicated 2.4GHz SSID
Certifications:             FCC



AC/DC Adapter Specifications


Mechanical Specifications

Model: MKC-1201000S
Dimensions: 1.87*1.55*0.90in   4.75*3.95*2.30cm
Materials: PC+ABS Fireproof
Color:Black
Cable Length:~10ft(3m)
Cable Type: DC Connector 5.5mm x 2.1mm


Electrical Specifications

Output: 12VDC
Input:Universal 100-240V 50/60Hz
Power Source: Half-Bridge Type
Protection: Over Current/Voltage/Short Circuit Protection
Certifications: CE, GS, BS, UL, FCC, PSE, Kc, SAA, CB, S-MARK



Wired Rope Leak Sensor Specifications


Mechanical Specifications

Dimensions:            0.59*0.59*39.37in   0.40*0.40*100.00cm
Color:White
Weight:0.08lbs(0.035kg)
Cable Length:39.37"(1m) Conductive
Cable Type: 2.5mm Stereo Jack



Wired Probe Leak Sensor Specifications


Mechanical Specifications

Dimensions:            1.50*1.00*0.35in   3.81*2.54*0.89cm
Color:Black
Weight:0.02lbs(0.011kg)
Cable Length:~29"(73.6cm) Non-Conductive
Cable Type: 2.5mm Stereo Jack



Wireless Keyfob Button Specifications


Mechanical Specifications

Model: HFY512C
Dimensions:     2.50*1.35*0.50in   6.35*3.43*1.27cm
Materials: Plastic
Color:White
Weight:0.04lbs(0.02kg)
Buttons:1
LED's:1


Electrical Specifications

Operating Voltage:6VDC
BatteriesCR2032 3V x 2


Communication Specifications

RF Transmitter Frequency: 433MHz
RF Transmitter Range: ~50ft(15m) Indoors



Battery Backup Specifications


Mechanical Specifications

Model:YB1203000-USB
Dimensions: 4.13"x2.52” x 0.94”               10.50cm x 6.4cm x 2.40cm
Materials: Thermoplastic, Steel
Color:Black
Weight: 0.42lbs(0.19kg)
Splitter:DC5521 1 female to male cable
LED's: 5
Ports:USB, DC Connector 5.5mm x 2.1mm


Electrical Specifications

Output Voltage, Connector 5.5mm x 2.1mm:
12VDC(9V-12.6V)
Output Amperage, Connector 5.5mm x 2.1mm:
3A
Output Voltage, USB:
5VDC
Output Amperage, USB:
2A
Capacity:11.1V/3Ah (33.3Wh)
Certifications:FCC,CE


Outdoor Kit 2 Enclosure Specifications


Mechanical Specifications

Dimensions:            7.50*7.60*3.50in   19.05*19.30*8.89cm
Color:Light Green
Weight:0.99lbs(0.449kg)
Material:PVC
Sealing:Weather Resistant



Accessories

Outdoor 2 Kit

Are you doing an outdoor valve installation?  Consider upgrading/adding the ODK2 Kit that comes with a sealed enclosure to protect your Bulldog controller. If you plan on wiring the Bulldog controller into your house from an outdoor valve, leave a note on your purchase, or consider adding the ODK1 for pre-configuration. For more info contact support@econetcontrols.com.

Outdoor 2 Kit

Wired Leak Sensor Kits

Do you have any leak sensitive spots near your valve like a washing machine or water heater? Consider upgrading/adding a Wired Leak Sensor Kit, for more protection and versitility.

Wired Leak Sensor Kits

Battery Backup

Do you have power outages in your area? Consider upgrading/adding a battery backup kit that can keep your Bulldog system working for up to 24 hours during a power outage.

Battery Backup

Wall Mounted Remote

Do you want better access to your Bulldog valve? Consider upgrading/adding a wall mounted button for the Bulldog-WIFI. With the wall mounted button you can control your valve from more locations. Saving you a trip to the Econet controller.

Wall Mounted Emergency Shutoff Button

Repair/Return Policy

If you are not satisfied with our product or it does not function as expected or required, you can return the product for a refund or credit within 30 days of the original ship date. The product must be returned in its original packing in new condition to qualify for a full refund otherwise restocking charges may apply.

Although we have designed and tested our products and systems for reliable 24/7 operation, the nature of wireless control and automation environment can cause malfunctions. Please contact our customer service department at ph. 1-888-320-9188 or email support@EcoNetControls.com with details of your product or system malfunction. Please provide your contact details, the product model and serial number as well as any details of the malfunction. Our support specialist will review the problem and assist you in providing the best solution for your particular circumstances. If necessary we will provide an RMA number (Return Material Authorization) for the product return. Typical repair turn around time is 2-10 days. There are no charges for parts or labor for warranty repairs and we will return the product with shipping charges prepaid. We will provide a repair cost quote for non-warranty repairs.


Warranty

All EcoNet Controls products have a 1 year parts and labor warranty from original ship date.

EcoNet Controls Inc. standard limited warranty is limited to the value of system/products purchased. In no event will Econet Controls be liable for any consequential, incidental, exemplary, or special damages including any water damage
